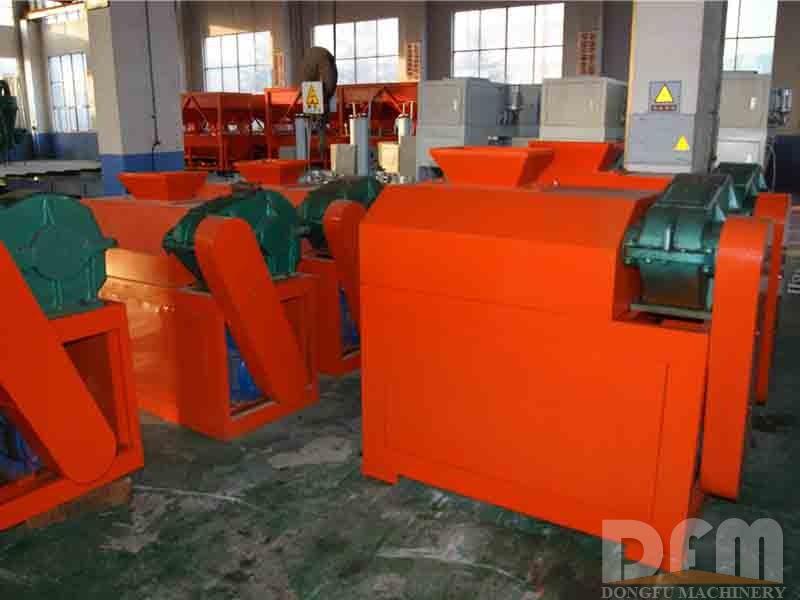

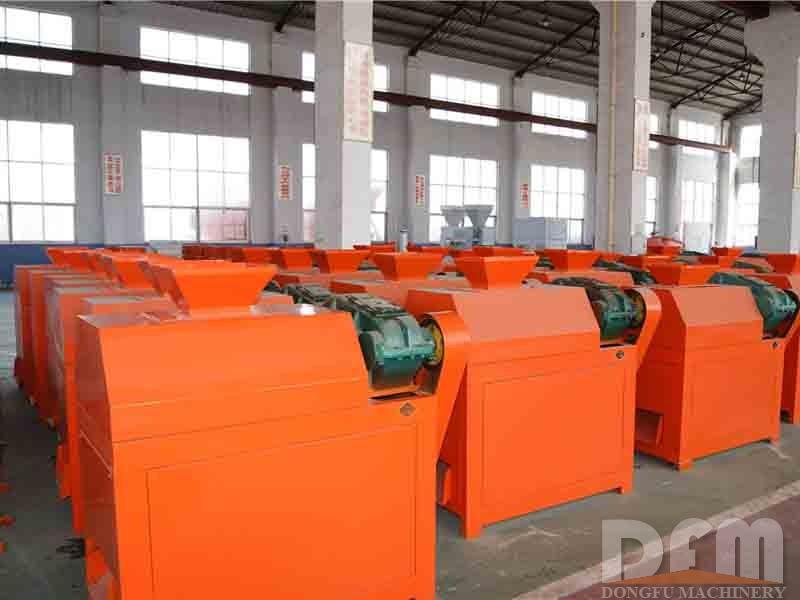

Ammonium bicarbonate double roller extrusion granulator

Use: for ammonium bicarbonate fertilizer production
Capacity: 0.8 ~ 3.5 tons / hour
Material: a ammonium bicarbonate
Application: fertilizer production and processing

Product Introduction

The Ammonium bicarbonate double roller extrusion granulator is the key equipment of compound fertilizer granulation and has the characteristics of advanced technology, reasonable design, compact structure, novelty and utility and low energy consumption; it is equipped with corresponding equipment, which can form a small production line, thus forming the continuous production of certain production capacity and mechanization production. The machine adopts the eugenic formula without drying and produce fertilizer by normal temperature; the product once rolled and formed, meeting the requirements of technical specifications of compound fertilizer. Therefore, it is the upgraded machine for the production of high, medium and low concentration special compound fertilizer and the renewable energy consumption of the compound fertilizer industry.



Characteristics of Performance of Ammonium bicarbonate double roller extrusion granulator

Less investment, quick results, good economic benefits. The roller extrusion granulator can produce fertilizer by normal temperature without no more drying technology, pellets formed only once extrusion.



Reliable operation and low cost. The machine’s power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.



The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.



The roller extrusion granulator can be used for the granulation of earth, carbon ammonium and ammonium sulfate compound fertilizer, filling the domestic blank.



Working Principle of Ammonium bicarbonate double roller extrusion granulator

This series of Ammonium bicarbonate double roller extrusion granulator is extruded model, and its working principle is: Electromotor drives the belt and pulley, then it is transmitted to the driving shaft by the speed reducer, and by synchronizing the open gear with the passive shaft, achieving the working in the same direction. Material is added from the hopper, after the roll extrusion forming, demoulding pelletizing; and through a chain, the balls are transferred to the broken screen studio, sieving and isolate the finished products (the balls), then return to mix with new materials and granulate again.



Model

TDJZ-1T

TDJZ-1.5T

TDJZ-2T

TDJZ-3T

Power

Granule Dia.≤4.5mm:11kw

Granule Dia.>4.5mm: 15kw

Granule Dia.≤4.5mm:18.5kw

Granule Dia.>4.5mm: 22kw

Granule Dia.≤4.5mm:22kw

Granule Dia.>4.5mm: 30kw

Granule Dia.≤4.5mm:37kw

Granule Dia.>4.5mm: 45kw

Granule Dia.(mm)

3-10

3-10

3-10

3-10

Roller Size(mm)

150*220

150*300

185*300

300*300

Dimension(mm)

1450*800*1450

1450*850*1500

1630*850*1650

1850*1100*2050

Weight(t)

0.8

0.96

1.2

1.4

Capacity(t/h)

1

1.5

2

3
