Use: Animal Manure Granulation
Material: Carbon steel Q235/Alloy
Voltage: 220v/380v/415v/440v/480v(50Hz/60Hz)
Capacity: 0.3- 6.0 t/h
The function of cat litter is to dispose pet waste. The Animal Manure Organic Fertilizer Granulator manufactured by us is very suitable for the granulation of cat litter. Cat litter is mainly made by wet method. There are many types of cat litter in the daily life, and its raw materials can be sawdust, tofukasu, bentonite, rice husk, cotton stalk, cottonseed husk, weeds, straws of various crop, etc. We have rich experience in cat litter granulation, and have provided customers with high-quality pan granulator for making cat litter with bentonite.

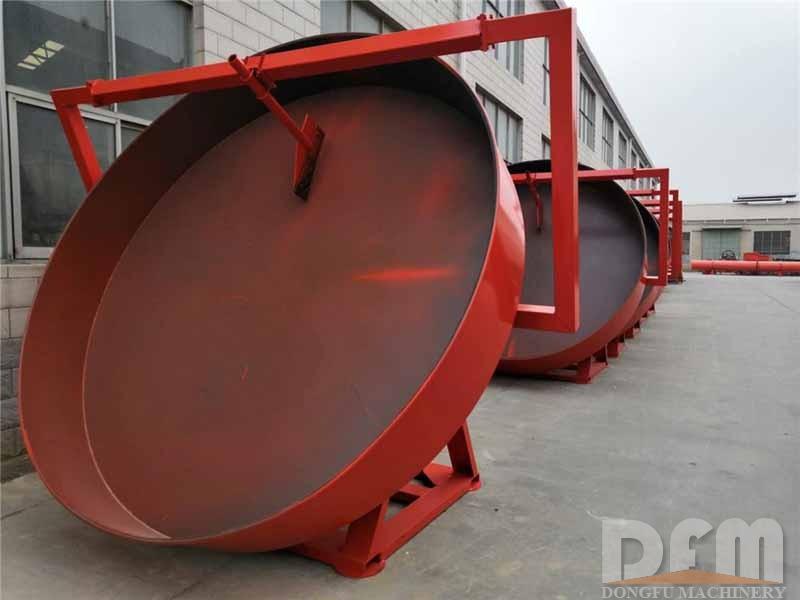

Features of Animal Manure Organic Fertilizer Granulator
High Granulation efficiency. The angle of its disc adopts integral arc structure, so that the granulation rate can reach above 93%. The granulator has three discharge ports, which is convenient for discontinuous production, reducing labor intensity and improving labor efficiency.
Adopting high strength steel plate, sturdy and durable. Main gear adopts high frequency quenching, so the service life increases 1 times.
Simple structure, easy operation, and easy maintenance. Lined with high strength glass fiber reinforced plastics, corrosion resistant and durable. Uniform granulation, high granulation rate, smooth operation.
Model | TDYZ-500 | TDYZ-600 | TDYZ-800 | TDYZ-1000 | TDYZ-1200 | TDYZ-1500 |
Diameter of Disc(mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 |
Edge Height(mm) | 200 | 280 | 200 | 250 | 250 | 300 |
Rotary Speed(r/min) | 32 | 33.5 | 21 | 21 | 21 | 21 |
Motor Power(kw) | 0.55 | 0.75 | 1.5 | 1.5 | 1.5 | 3 |
Capacity(t/h) | 0.02-0.05 | 0.05-0.1 | 0.1-0.2 | 0.2-0.3 | 0.3-0.5 | 0.5-0.8 |
Reducer | BWY0-43-0.55 | BWY0-43-0.55 | XWD4-71-1.5 | XWD4-71-1.5 | XWD4-71-1.5 | XWD5-71-3 |
Dimension(mm) | 650*600*800 | 800*700*950 | 900*1000*1100 | 1200*950*1300 | 1200*1470*1700 | 1760*1500*1950 |
Model | TDYZ-1800 | TDYZ-2000 | TDYZ-2500 | TDYZ-2800 | TDYZ-3000 | TDYZ-3200 | TDYZ-3600 |
Diameter of Disc(mm) | 1800 | 2000 | 2500 | 2800 | 3000 | 3200 | 3600 |
Edge Height(mm) | 300 | 350 | 450 | 450 | 450 | 450 | 450 |
Rotary Speed(r/min) | 21 | 21 | 14 | 14 | 14 | 14 | 13 |
Motor Power(kw) | 3 | 4 | 7.5 | 11 | 11 | 15 | 18.5 |
Capacity(t/h) | 0.8-1.2 | 1.2-1.5 | 1.5-2.0 | 2-3 | 2-4 | 3-5 | 4-6 |
Reducer | XWD5-71-3 | XWD5-71-4 | ZQ350 | ZQ350 | ZQ350 | ZQ350 | ZQ400 |
Dimension(mm) | 2060*1700*2130 | 2260*1650*2250 | 2900*2000*2750 | 3200*2200*3000 | 3400*2400*3100 | 3600*2600*3300 | 4100*2900*3800 |
