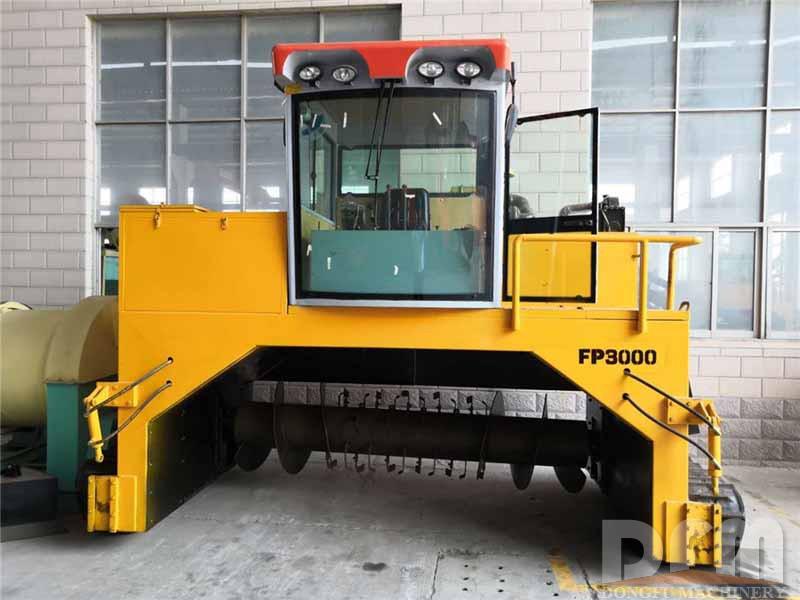

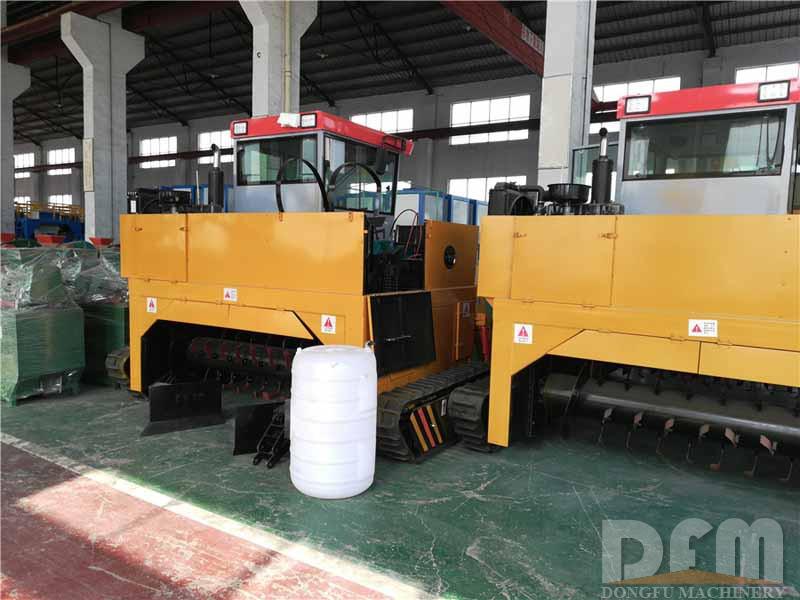

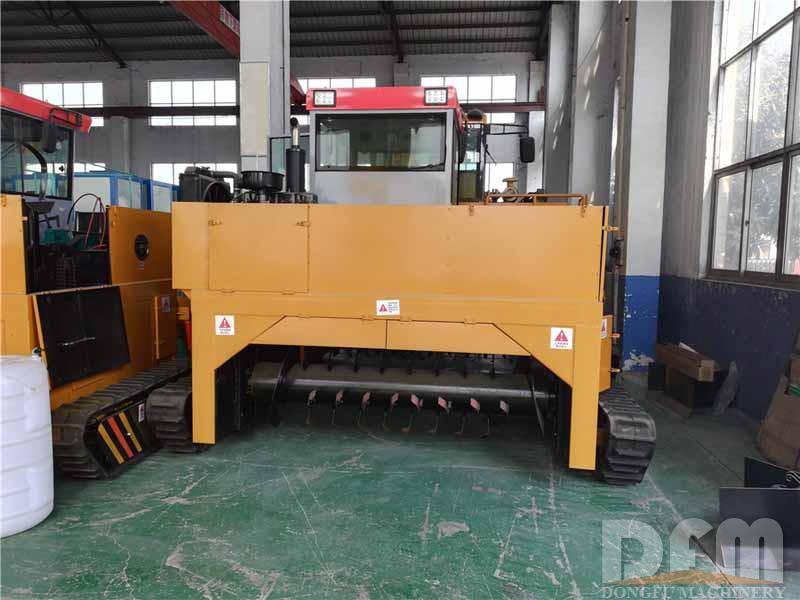

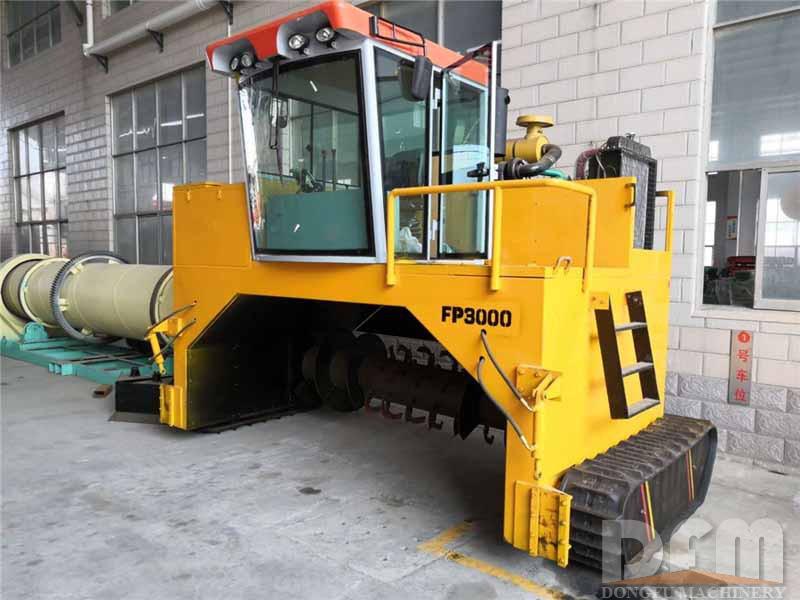

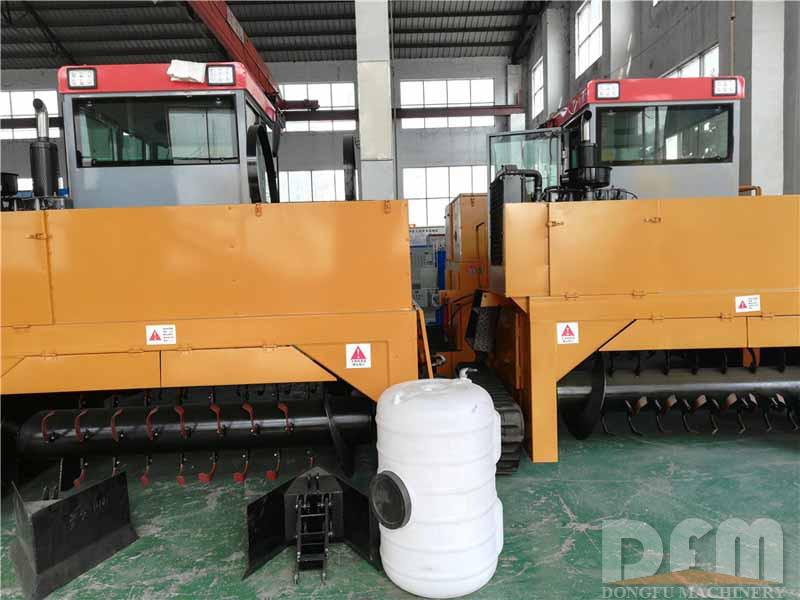

Crawler Type Compost Turner

Power: HP diesel engine
Use: Compost turning
Working Speed: 6-18m/min
Rotary Speed: 2200r/min
Warranty: 1 Year
Color: Yellow/Blue



This compost turner machine eliminates the hydraulic steering wheel type stacker. It is a new product owned exclusively by our company in the market. It fills the market gap that the large wheeled compost turner machines can not turn around in situ. No steering wheel required, the driver simply control two bars, then the machine can turn left or right, brake and 180 degrees turn around. Hydraulic balance of steering wheel. The height of the compost turner shaft can be automatically raised and lowered. The fertilizer pile can be forcibly turned or turned at high speed according to the moisture degree of the material.



This product adopts soft start turning clutch (domestic similar products are used for iron to iron hard clutch, which will cause serious damage to chain, bearings and shaft). Equipped with front hydraulic push plate, no manual taking time to heap raw materials, drum hydraulic lifting, which greatly save the space, time, diesel, manpower and shorten the fermentation period.



Model

TDLDF-2300

TDLDF-2600

TDLDF-3000

TDLDF-3000(Full hydraulic)

Turning Width (mm)

2300

2600

3000

3000

Turning Height(mm)

600-1000

1100-1300

1300-1500

1600-1800

Row Spacing(mm)

800-1000

800-1000

800-1000

100-1000

Max. Dia. of Material Particles(mm)

250

250

250

250

Power(HP)

75

116

136

143

Working Knife Dia. (mm)

400

500

500

800

Working Speed(m/min)

6-10

6-10

6-10

6-10

Capacity(m3/h)

500-700

1000-1200

1300-1500

1500-1800
