1. Materials for dog/cat/fish food: wheat/ corn flour, fish meal, born powder, animal oil
2. Final food : different shapes and sizes of dog food, cat food, shrimp feed, fish feed, poultry feed
3. Capacity: 2-3t/h,4-6t/h
4. Consumption: Low electricity and labor consumption
5. Design: With flexible design based on the client's demands, we provide turn key project.
6. Grade: SUS201, SUS304

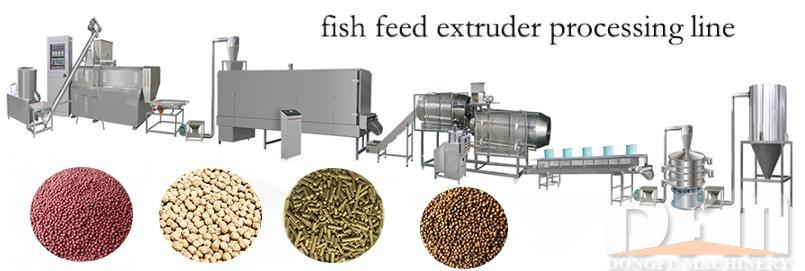

Fish feeds machine pellet machine fish feed machinery extruder production line

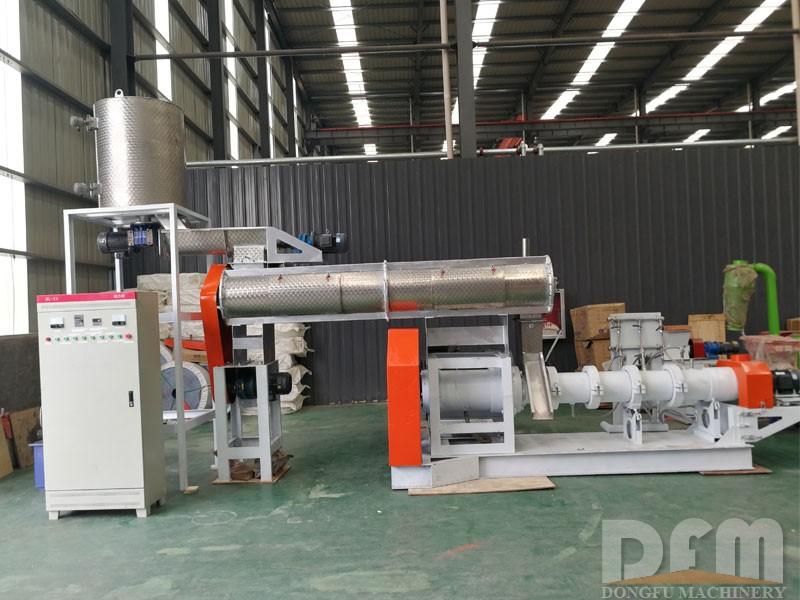

Twin screw fish feed extruder, also called floating fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc. We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding, forming, filling and cutting, drying, oil spraying, packing to produce floating and
sinking fish feed pellets automatically, Moreover, you can change extrusion degree to influence floating time.

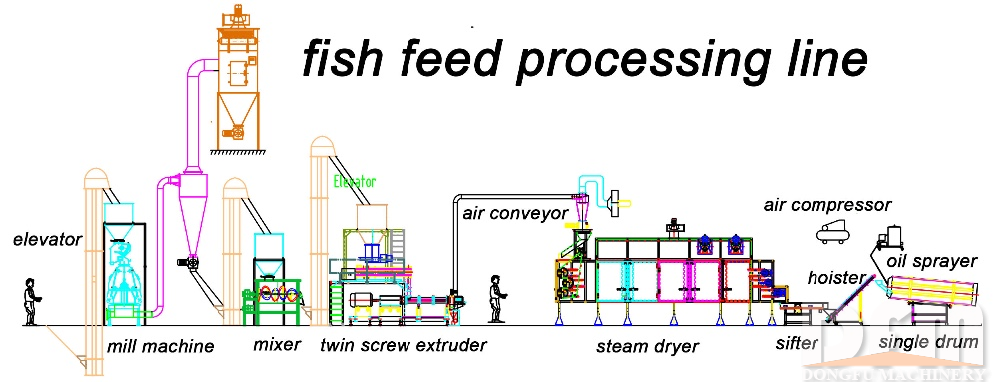

Flow chart of fish feed production line:
Grinding→mixing→extruding→drying→flavoring→cooling→packaging
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
Twin Screw Extruder model option for customer to choose :
Model | Installed Power(kw) | Power Consumption (kw) | Output (kg) | Dimension(m) |
DSE65 processing line | 74 | 52 | 120-180 | 17*1.2*2.2 |
DSE70 processing line | 95 | 70 | 200-300 | 20*1.5*2.2 |
DSE75 processing line | 110 | 82 | 250-400 | 26*1.5*2.2 |
DSE85 processing line | 139 | 104 | 400-800 | 28*3.5*4.3 |
DSE90 processing line | 132 | 75 | 800-1200 | 28*3.5*4.3 |
DSE95 processing line | 165 | 90 | 1500-2000 | 35*3.5*4.3 |
280DSE130 processing line | 280 | 132 | Output3000-3500 | 45x4.5x6.0 |
