Capacity: 2-15 tons per hour
Materials: Various dry and wet materials
Application: organic or inorganic fertilizer

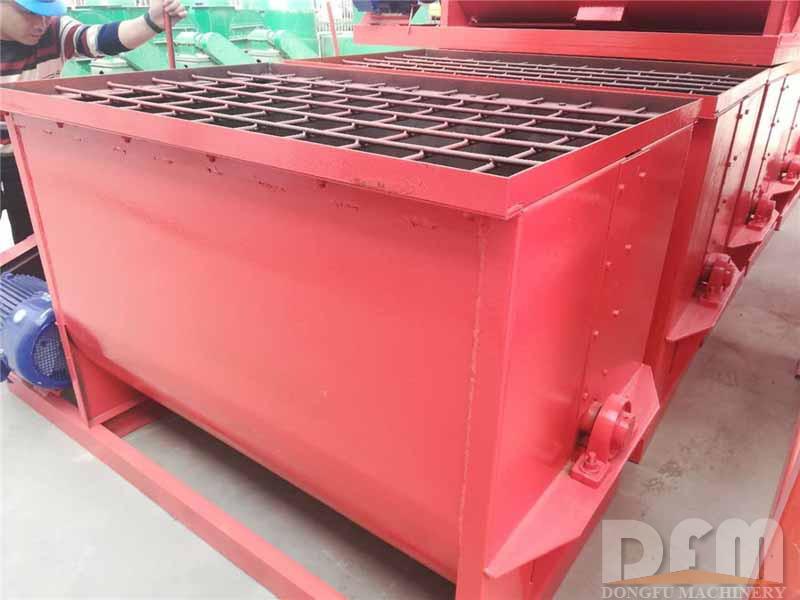

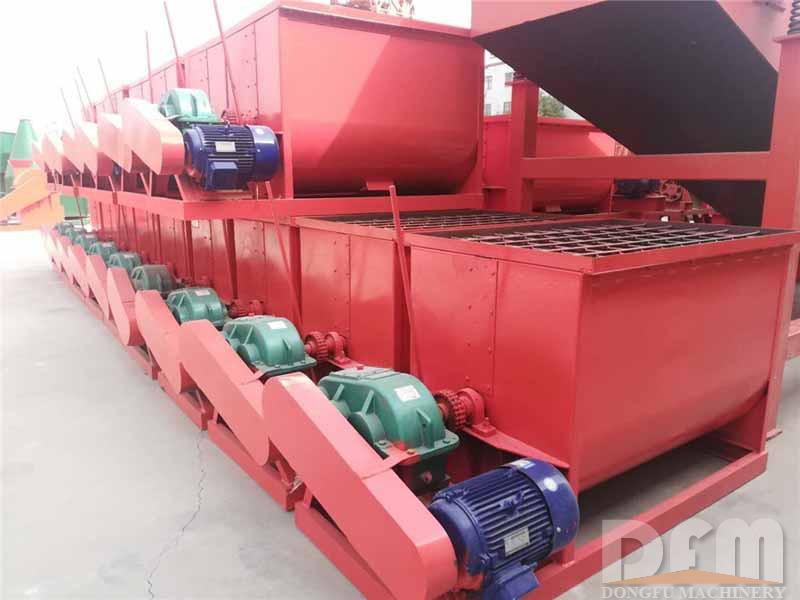

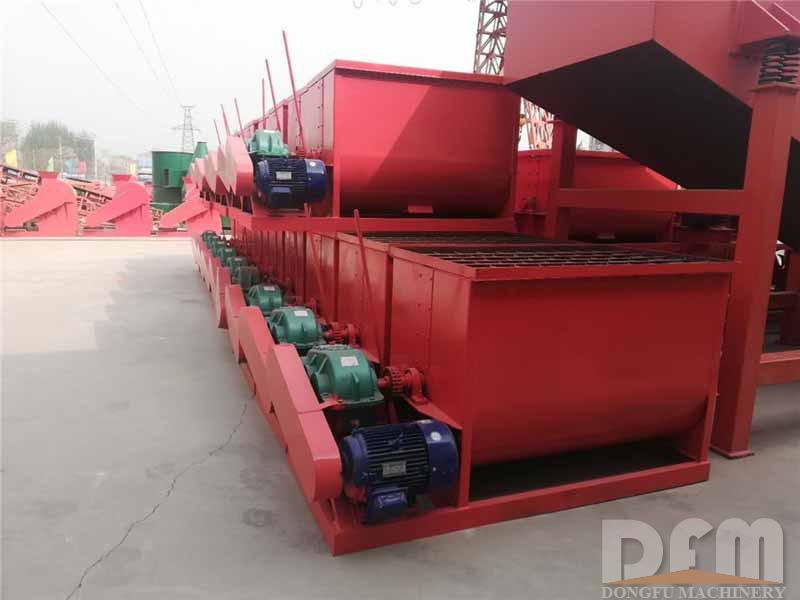

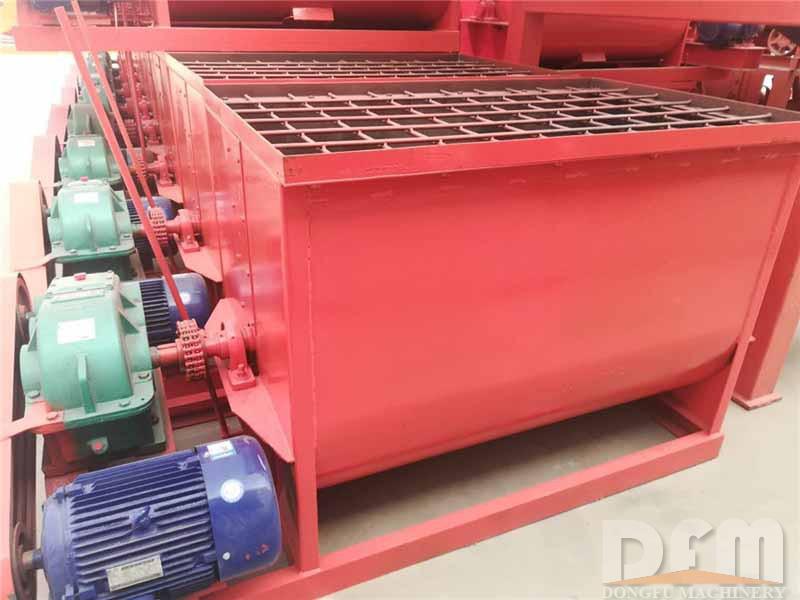

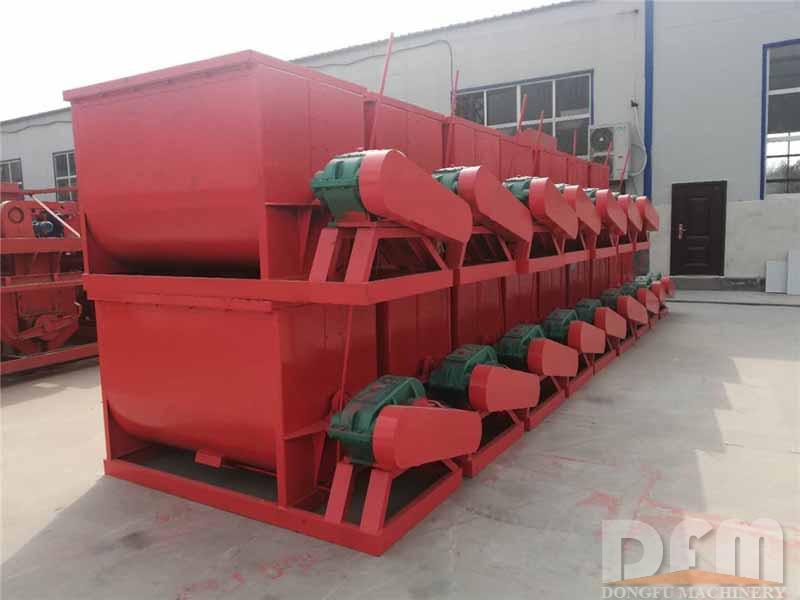

Horizontal fertilizer mixer is mainly used in organic fertilizer, compound fertilizer and dust collector under power plant. It can also be used in chemical metallurgy, mining, building materials and other industries.
Advantages:
1. High stirring efficiency, small floor space. The spiral blade adopts special high – wear alloy.
2. The horizontal mixer adopts the reducer transmission; the rotation is stable, and the noise is low.
3. Feeding from top and discharging from bottom, which is reasonable structure.
4. The joint surfaces are tightly sealed and run smoothly.
Working Principle
Horizontal fertilizer mixer is rotated by a shaft that added a spiral blade, then adding water to mix while conveying dry ash and other powdery materials, so that the dry ash powder can be humidified equably, which makes the material being humidified do not run dry ash while the water drop can not oozed.
Model | TDWJ-0715 | TDWJ-9015 | TDWJ-1630 |
Dimension(mm) | 2350*1200*1000 | 2350*1200*1000 | 3950*1720*2100 |
Power(kw) | 7.5 | 11 | 22 |
Reducer | ZQ350-23.34 | ZQ350-23.34 | ZQ500-48.57 |
Stirring Speed(r/min) | 46 | 39 | 21 |
Main Plate Thickness(mm) | 4 | 4 | 10 |
Capacity(t/h) | 2-3 | 3-5 | 10-15 |
