Capacity: 1-8 t/h
Materials: Compost manure and plant waste
Application: Organic fertilizer production

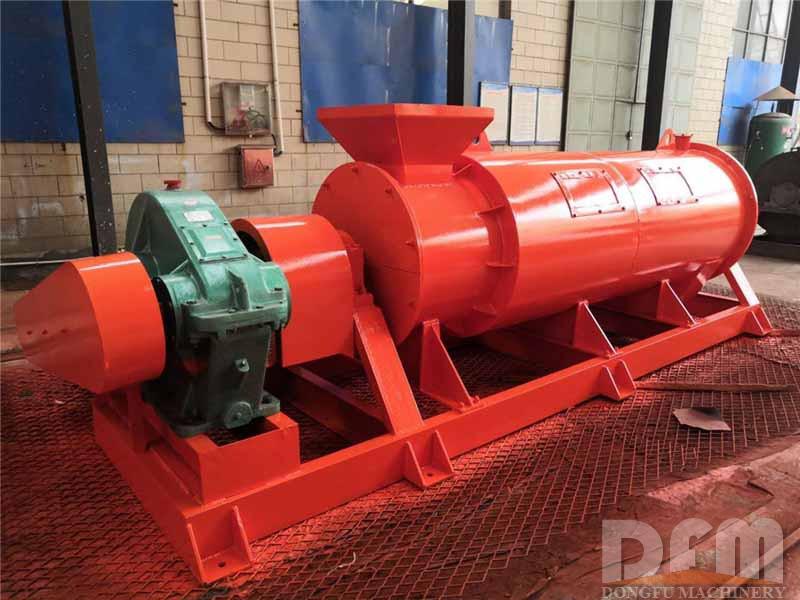

The newly developed organic fertilizer granulator from our company is a molding machine which can make the material into a specific shape.
The new type organic fertilizer granulator uses high speed rotating mechanical shearing force and the resulting air power, making continuous implementation of the fine powder material in the machine mixing, granulating, spheroidizing, density and other processes, which achieves the goal of the granulation. The granulation method makes the pellet rate higher, and the granule is more beautiful, while saving energy and improving efficiency.
Characteristics of Performance
The principle is simple, and the granulation speed is fast; using high speed rotating mechanical shearing force and the resulting air power makes continuous implementation of the fine powder material in the machine mixing, granulating, spheroidizing, density and other processes.
The granule quality is high and the machine is especially suitable for granulation of light powder materials. Finer particles of fine powder, higher sphericity of granules, and higher pellets quality.
No bond is required; using the particles of organic matter to be interbred with each other under certain forces, so no bond is needed for granulation.
Wide source of materials, including livestock and poultry manure, compost fertilizer, sea fertilizer, cake fertilizer, etc.
Working Principle
The new type organic fertilizer granulator uses high speed rotating mechanical shearing force and the resulting air power, making continuous implementation of the fine powder material in the machine mixing, granulating, spheroidizing, density and other processes, which achieves the goal of the granulation. The granulation method makes the pellet rate higher, and the granule is more beautiful, while saving energy and improving efficiency.
Model | TDJZ-600 | TDJZ-800 | TDJZ-1000 | TDJZ-1200 | TDJZ-1500 |
Installation Angle(°) | 2-2.5 | 2-2.5 | 2-2.5 | 2-2.5 | 2-2.5 |
Capacity(t/h) | 1-1.5 | 1.5-2.5 | 2-4 | 4-6 | 6-8 |
Total Power(kw) | 37 | 55 | 75 | 90 | 110 |
Moisture of Feeding Materials | 20%-40% | 20%-40% | 20%-40% | 20%-40% | 20%-40% |
Size of Feed Materials(mesh) | 50 | 50 | 50 | 50 | 50 |
Dimension(mm) | 4100-1600*1150 | 4250*1850*1300 | 4700*2350*1600 | 4900*2550*1800 | 5500*2800*2000 |
