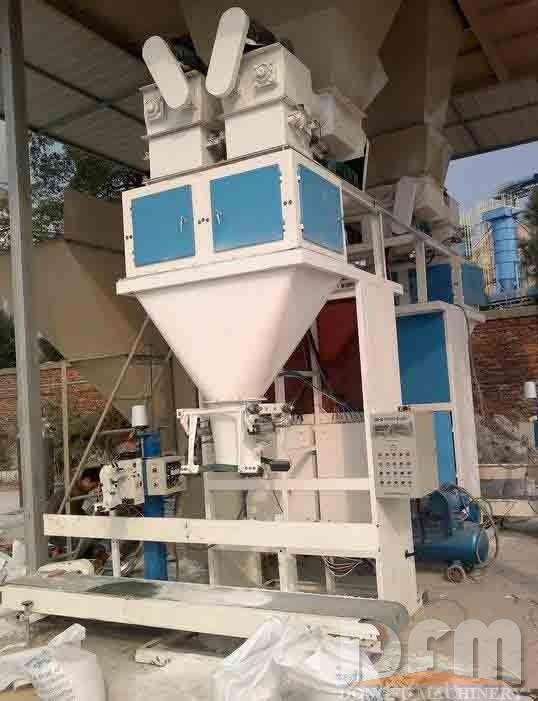

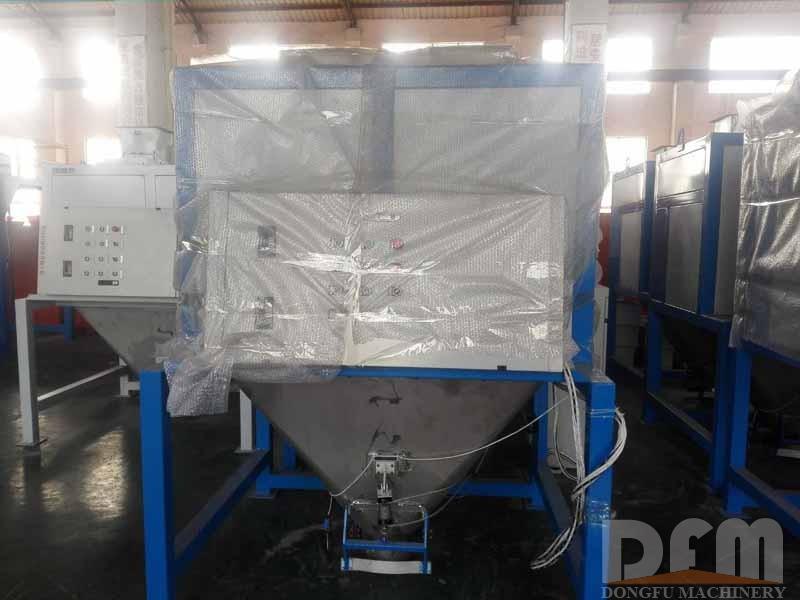

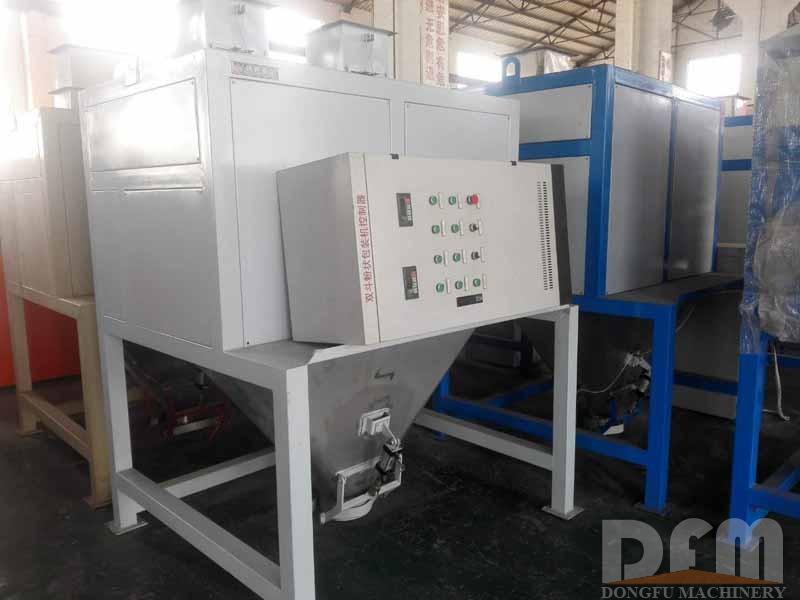

Auto-quantitative packing scale-Granule type-Double Hoppers

Model: TDFB-100
Capacity: 15-25 tons per hour
Materials: minerals and biological raw materials
Application: various industries

Auto-quantitative packing scale-Granule type-Double Hoppers is designed for quantitative packaging, which is divided into two types: double bucket packing scale and single bucket packing scale. The integrated structure has the advantages of low height, compact structure, energy saving, high efficiency, novel appearance, simple installation and convenient maintenance.



Features

1. Quickly packing speed.

2. High measuring accuracy.

3. High reliability: The main control system components all adopts imported products.

4. Reasonable mechanical structure: the system is free of maintenance, and it is adaptable for various materials.

5. Anticorrosive material for materials contact parts of the equipment.



The host computer of this packing scale adopts three speed feeding: fast, medium, slow, and special feeding screw conveying equipment. We use advanced digital frequency conversion control technology, sampling processing technology, anti-interference technology, so as to realize automatic error compensation and correction.



Model

TDFB-100

Dimension

4500*1800*3800mm

Feed belt power

0.55kw*2

Belt conveyor power

0.75kw

Bag-sewing power

0.37kw

Packing range

20-50kg

Capacity

200-400 bags/h

Packing accuracy

OILMR61*0.2

Speed

adjustable

Auto-weighing hopper

Equipped with double auto-weighing   hoppers

Bag-sewing machine &   transport belt

Equipped with bag-sewing   machine & transport belt

Hopper liner

Stainless steel liner
