Model: TDFB-60B
Capacity: 10-20 tons per hour
Materials: minerals and biological raw materials
Application: various industries

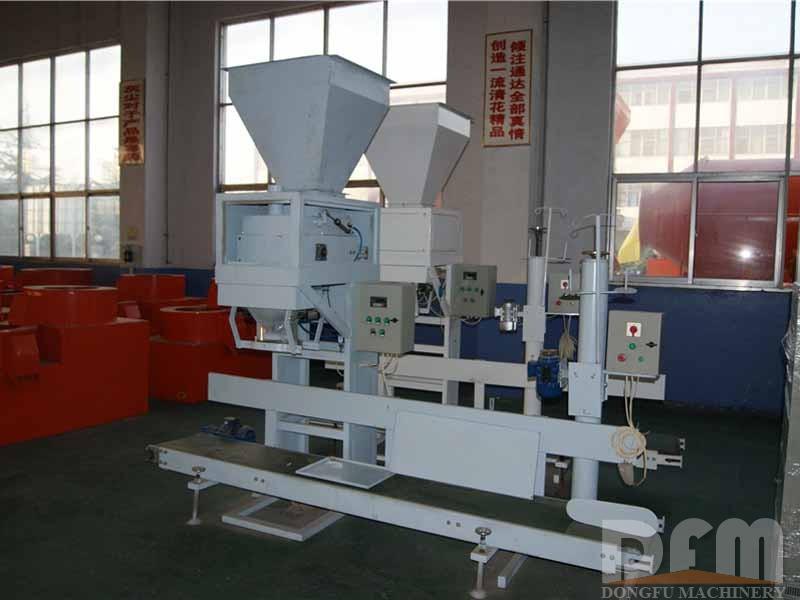

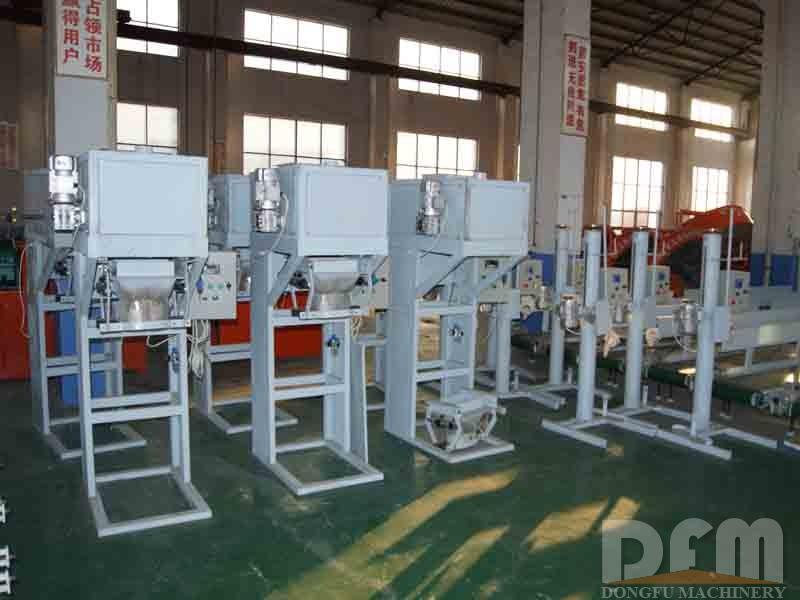

Auto-quantitative packing scale-Powder type-no hopper is designed for quantitative packaging, which is divided into two types: double bucket packing scale and single bucket packing scale. The integrated structure has the advantages of low height, compact structure, energy saving, high efficiency, novel appearance, simple installation and convenient maintenance.
Features
1. Quickly packing speed.
2. High measuring accuracy.
3. High reliability: The main control system components all adopts imported products.
4. Reasonable mechanical structure: the system is free of maintenance, and it is adaptable for various materials.
5. Anticorrosive material for materials contact parts of the equipment.
The host computer of this packing scale adopts three speed feeding: fast, medium, slow, and special feeding screw conveying equipment. We use advanced digital frequency conversion control technology, sampling processing technology, anti-interference technology, so as to realize automatic error compensation and correction.
Model | TDFB-60B |
Dimension | 4000*1200*2700mm |
Feed belt power | 0.55kw |
Belt conveyor power | 0.75kw |
Bag-sewing power | 0.37kw |
Packing range | 20-50kg |
Capacity | 200-400 bags/h |
Packing accuracy | OILMR61*0.2 |
Speed | adjustable |
Auto-weighing | Equipped with auto-weighing system |
Bag-sewing machine & transport belt | Equipped with bag-sewing machine & transport belt |
