Model: 3000
Power: HP diesel engine
Use: Compost turning
Working Speed: 6-18m/min
Rotary Speed: 2200r/min
Warranty: 1 Year
Color: Yellow/Blue

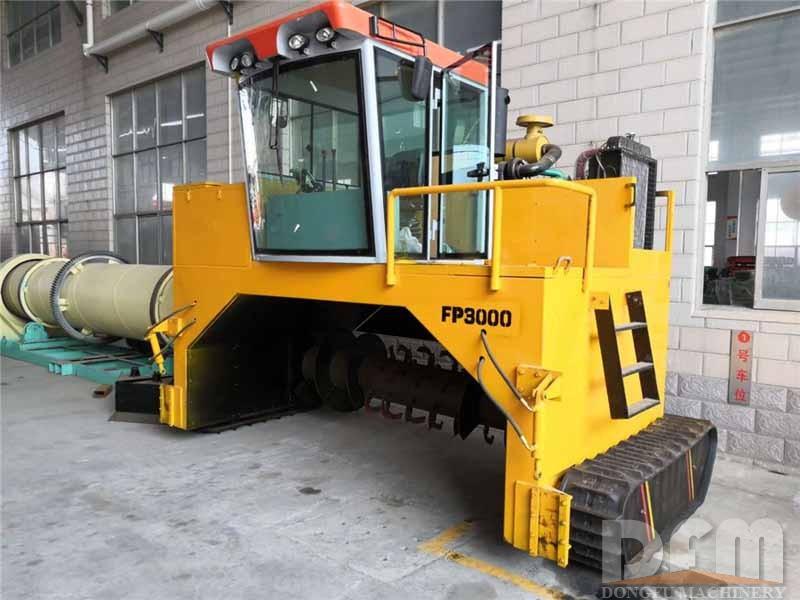

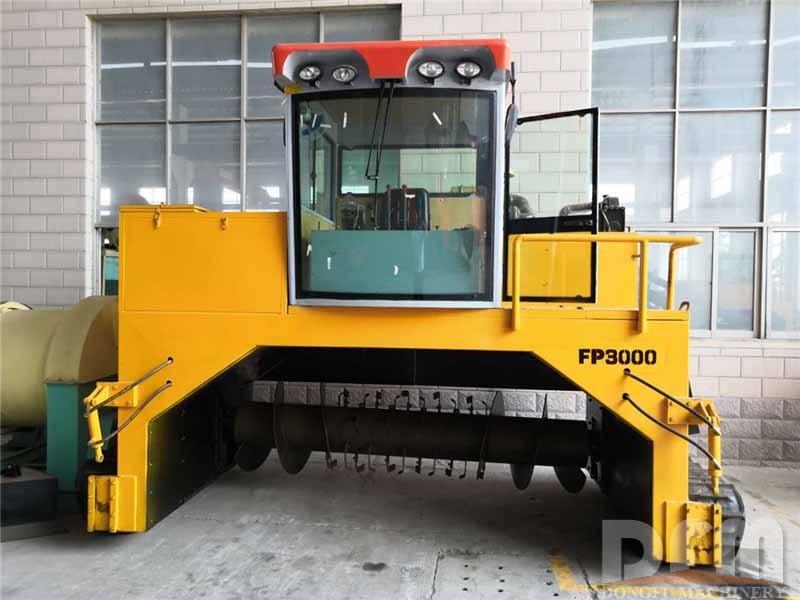

Caterpillar Type Compost Turner Model 3000 eliminates the hydraulic steering wheel type stacker. It is a new product owned exclusively by our company in the market. It fills the market gap that the large wheeled compost turner machines can not turn around in situ. No steering wheel required, the driver simply control two bars, then the machine can turn left or right, brake and 180 degrees turn around. Hydraulic balance of steering wheel. The height of the compost turner shaft can be automatically raised and lowered. The fertilizer pile can be forcibly turned or turned at high speed according to the moisture degree of the material.
This product adopts soft start turning clutch (domestic similar products are used for iron to iron hard clutch, which will cause serious damage to chain, bearings and shaft). Equipped with front hydraulic push plate, no manual taking time to heap raw materials, drum hydraulic lifting, which greatly save the space, time, diesel, manpower and shorten the fermentation period.
Model | TDLDF-3000 |
Turning Width (mm) | 3000 |
Turning Height(mm) | 1300-1500 |
Row Spacing(mm) | 800-1000 |
Max. Dia. of Material Particles(mm) | 250 |
Power(HP) | 136 |
Working Knife Dia. (mm) | 500 |
Working Speed(m/min) | 6-10 |
Capacity(m3/h) | 1300-1500 |
